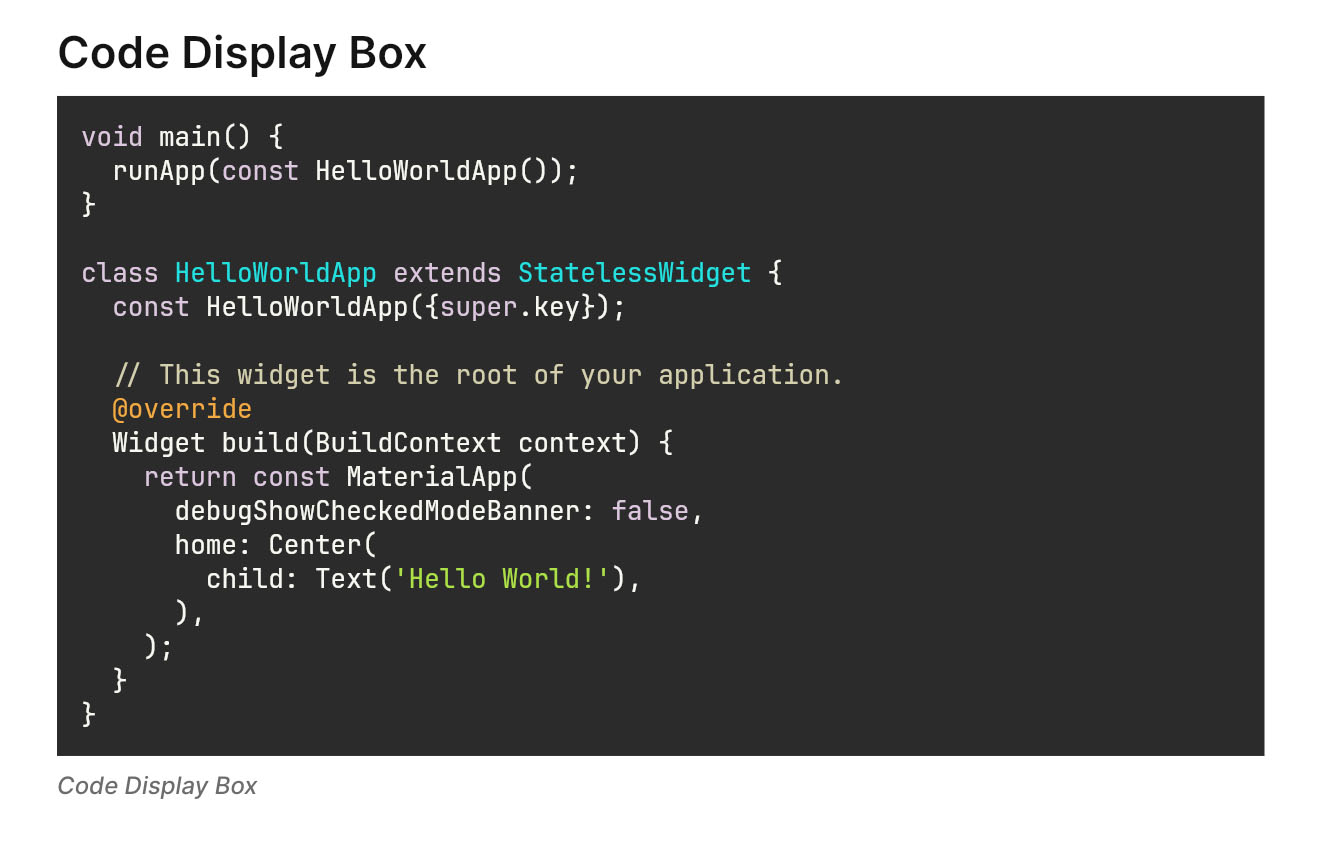

Code Display Box

The code display box is an enhanced version of the flutter_highlight widget.

The FUICodeDisplayBox widget class could be found in:

focus_ui_kit/components/typography/fui_code_display_box.dart

The FUICodeDisplayBoxTheme class serves as the theme class for the FUICodeDisplayBox. Kindly explore this theme class to ascertain various settings applicable to the FUICodeDisplayBox.

Accessing the theme

To access the theme class object, do the following:

@override
Widget build(BuildContext context) {
    FUICodeDisplayBoxTheme fuiCDBTheme = context.theme.fuiCodeDisplayBox;

    // ...
}

Usage

Common Usage

@override
Widget build(BuildContext context) {
    /// ...

    const String srcCode = '''void main() {
      runApp(const HelloWorldApp());
    }

    class HelloWorldApp extends StatelessWidget {
      const HelloWorldApp({super.key});

      // This widget is the root of your application.
      @override
      Widget build(BuildContext context) {
        return const MaterialApp(
          debugShowCheckedModeBanner: false,
          home: Center(
            child: Text('Hello World!'),
          ),
        );
      }
    }''';

    return FUICodeDisplayBox(text: srcCode, lang: 'dart');

    /// ...
}

To have a different theme

/// Refer to: https://github.com/git-touch/highlight.dart/tree/master/flutter_highlight/lib/themes
/// E.g. monokai-sublime.dart -> theme = monokaiSublimeTheme; (It's a map value).

FUICodeDisplayBox(text: srcCode, lang: 'dart', theme: monokaiSublimeTheme);

The FUICodeDisplayBox accepts two primary parameters: text, which represents the source code in string format, and lang, which specifies the desired language for the syntax parser.

Parameters

Parameters	Description
String text	The source code or just text data to be parsed and highlighted according to the syntax defined in `lang`.
TextStyle? textStyle	The text style of the text data. Use this to override the default style (e.g. fontSize, fontWeight, etc.).
String lang	The language code name for the highlighter. Please refer to https://github.com/git-touch/highlight.dart/tree/master/highlight/lib/languages for the available language parser / highlighter.
Map<String, TextStyle> theme	This field only takes in the available map value from https://github.com/git-touch/highlight.dart/tree/master/flutter_highlight/lib/themes. Please refer to the list of themes available.
double? width	The desired width of the display box. Default - takes up the max width available.
double? height	The desired height of the display box. Default - as high as the codes are displayed.
