FUIButtonOutlinedTextIcon

As its name implies, the FUIButtonOutlinedTextIcon widget is analogous to the outlined button found in HTML/Javascript Bootstrap framework, utilizing Flutter’s OutlinedButton widget.

Instead of a full colored button, the colors are only on the borders and text/icon.

The FUIButtonOutlinedTextIcon widget classes could be found in:

lib/focus_ui_kit/components/button/fui_button_outlined_text_icon.dart

The FUIButtonTheme class is the theme class holds the default theme variables/values.

Accessing the theme

To access the theme class object, do the following:

@override
Widget build(BuildContext context) {
    FUIButtonTheme buttonTheme = context.theme.fuiButton;

    // ...
}

Usage

The FUIButtonOutlinedTextIcon widget is developer-friendly and requires only the label text (with an optional icon) and the onPressed callback. The usage is straightforward:

FUIButtonOutlinedTextIcon(
    text: Text('Click/Tap Me'),
    icon: Icon(CupertinoIcons.arrow_right), // Optional
    onPressed: () {
        print('Button pressed.');
    },
);

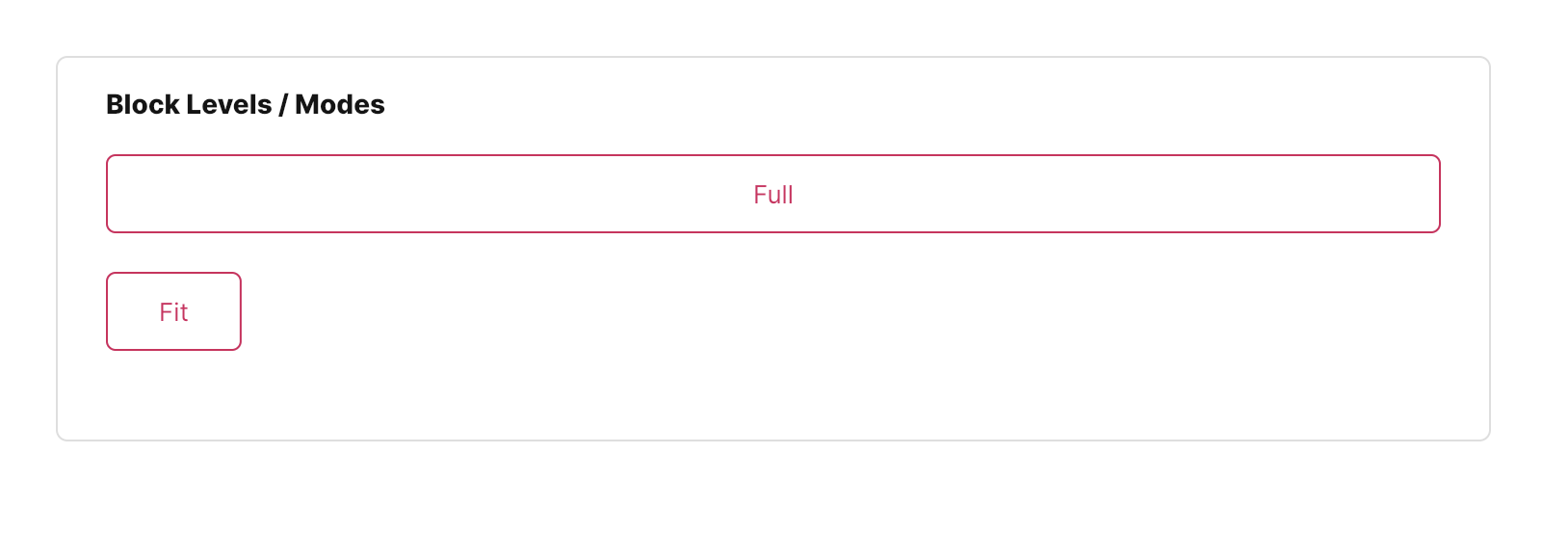

Block level

The FUIButtonOutlinedTextIcon offers two block modes:

Full: The button is stretched to occupy the available width of its parent containing widget.
Fit: The button’s width is adjusted to match the width of its label text.

This can be accomplished by configuring the fuiButtonBlockLevel parameter, which accepts values from the FUIButtonBlockLevel enum.

FUIButtonOutlinedTextIcon(
    text: Text('Full'),
    fuiButtonBlockLevel: FUIButtonBlockLevel.full,
    onPressed: () {},
);

FUIButtonOutlinedTextIcon(
    text: Text('Fit'),
    fuiButtonBlockLevel: FUIButtonBlockLevel.fit,
    onPressed: () {},
);

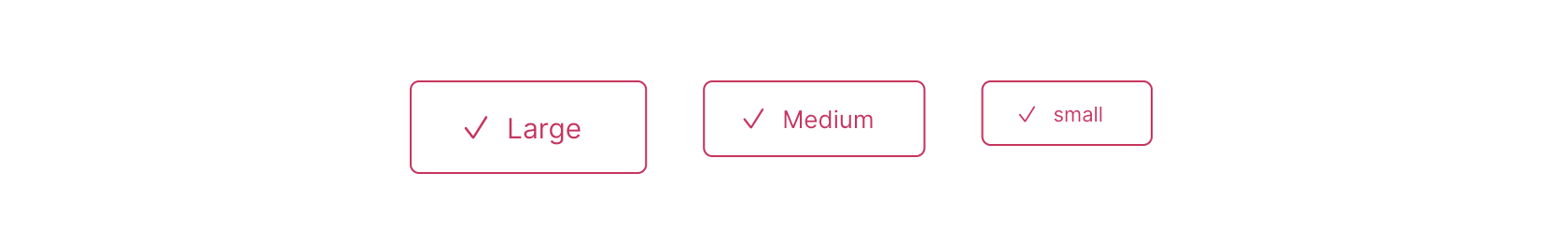

Changing the size

Different sizes could be configured for the FUIButtonOutlinedTextIcon, namely:

Large
Medium (default)
Small

This can be accomplished by configuring the fuiButtonSize parameter, which accepts values from the FUIButtonSize enumeration.

/// Large
FUIButtonOutlinedTextIcon(
    text: Text('Large'),
    fuiButtonSize: FUIButtonSize.large,
    onPressed: () {},
);

/// Medium (default)
FUIButtonOutlinedTextIcon(
    text: Text('Medium'),
    fuiButtonSize: FUIButtonSize.medium,
    onPressed: () {},
);

/// Small
FUIButtonOutlinedTextIcon(
    text: Text('Small'),
    fuiButtonSize: FUIButtonSize.small,
    onPressed: () {},
);

Changing the shape

The FUIButtonBlockTextIcon has 2 different shapes, namely:

Square (default)
Rounded - with rounded sides.

This can be accomplished by configuring the fuiButtonShape parameter, which accepts values from the FUIButtonShape enumeration.

/// Square (default)
FUIButtonOutlinedTextIcon(
    text: Text('Square'),
    fuiButtonShape: FUIButtonShape.square,
    onPressed: () {},
);

/// Rounded
FUIButtonOutlinedTextIcon(
    text: Text('Rounded'),
    fuiButtonShape: FUIButtonShape.rounded,
    onPressed: () {},
),

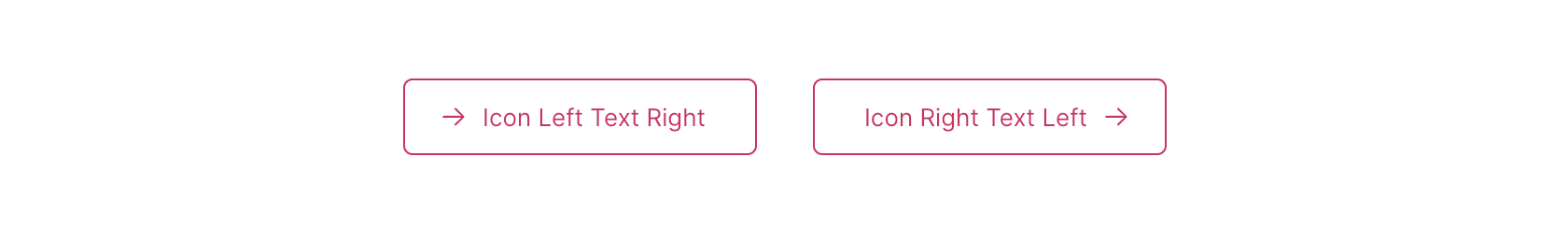

Positioning Text and Icon

The position of the text and icon of the button label can be swapped. The icon of the left or right side can be placed on top of the text, or vice versa.

This can be accomplished by configuring the fuiButtonTextIconPosition parameter, which accepts values from the FUIButtonTextIconPosition enum.

/// Icon Right Text Left
FUIButtonOutlinedTextIcon(
    text: Text('Icon Right Text Left'),
    icon: Icon(CupertinoIcons.arrow_right),
    fuiButtonTextIconPosition: FUIButtonTextIconPosition.iconRightTextLeft,
    onPressed: () {},
);

/// Icon Left Text Right
FUIButtonOutlinedTextIcon(
    text: Text('Icon Left Text Right'),
    icon: Icon(CupertinoIcons.arrow_right),
    fuiButtonTextIconPosition: FUIButtonTextIconPosition.iconLeftTextRight,
    onPressed: () {},
);

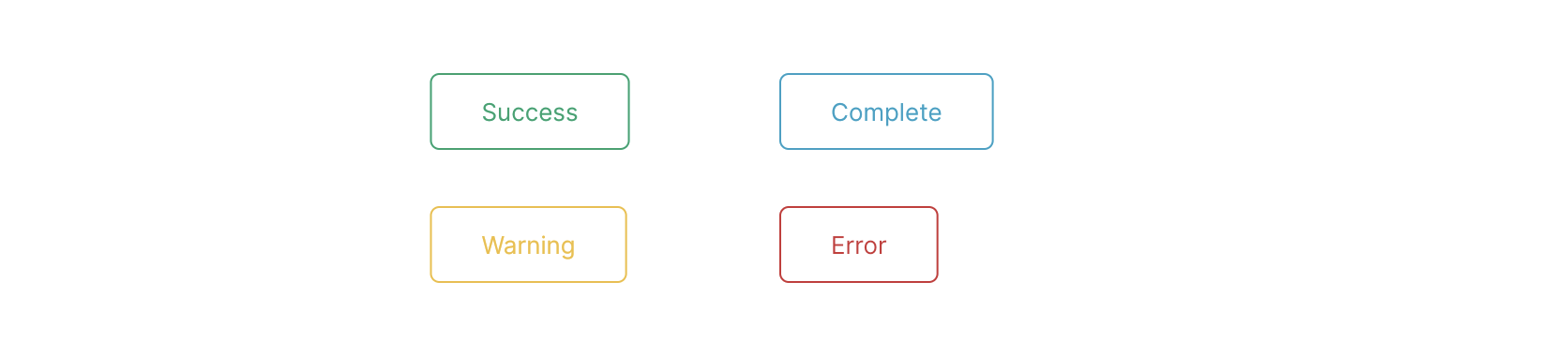

Changing the color scheme

The FUIButtonOutlinedTextIcon can be customized with a different color scheme by configuring the fuiColorScheme parameter. This parameter accepts values from the FUIColorScheme enum, allowing for flexibility in color selection.

FUIButtonOutlinedTextIcon(
    fuiColorScheme: FUIColorScheme.success,
    text: Text('Success'),
    onPressed: () {},
);

Enabling / Disabling with Controller

The FUIButtonOutlinedTextIcon enables or disables the button through a controller.

This functionality can be accomplished using the FUIButtonController controller.

/// Define the controller (usually in the initState function)
FUIButtonController btnCtrl = FUIButtonController();

/// Attached it with a FUIButtonOutlinedTextIcon widget.
FUIButtonOutlinedTextIcon(
    fuiButtonController: btnCtrl,
    text: Text('Look at me!'),
    onPressed: () {},
);

/// Toggle enable
btnCtrl.trigger(FUIButtonEvent(
    enable: true,
));

/// Toggle disable
btnCtrl.trigger(FUIButtonEvent(
    enable: false,
));

/// Close the controller (do this in the dispose function)
btnCtrl.close();

Major Parameters

Parameters	Description
Text text	The label text of the button.
Icon? icon	The icon for the button (if any).
FUIButtonTextIconPosition fuiButtonTextIconPosition	The position of the label text and icon in the button.
FUIColorScheme fuiColorScheme	The desired color scheme of the button.
FUIButtonSize fuiButtonSize	The desired pre-configured size of the button
FUIButtonShape fuiButtonShape	The desired pre-configured shape of the button.
FUIButtonBlockLevel fuiButtonBlockLevel	Stretch the button to the fullest width or fit mode.
FUIButtonController? fuiButtonController	The controller to toggle enable / disable for the button.
Color? borderColor	Overrides the border color.

Other parameters

The other parameters corresponds to the ones available in OutlinedButton.
