Wizard

Inspired by the wizard component of HTML/Javascript Bootstrap, the Focus UI Kit offers a comprehensive form wizard implementation.

The wizard widget classes could be found in the directory of:

lib/focus_ui_kit/components/wizard/

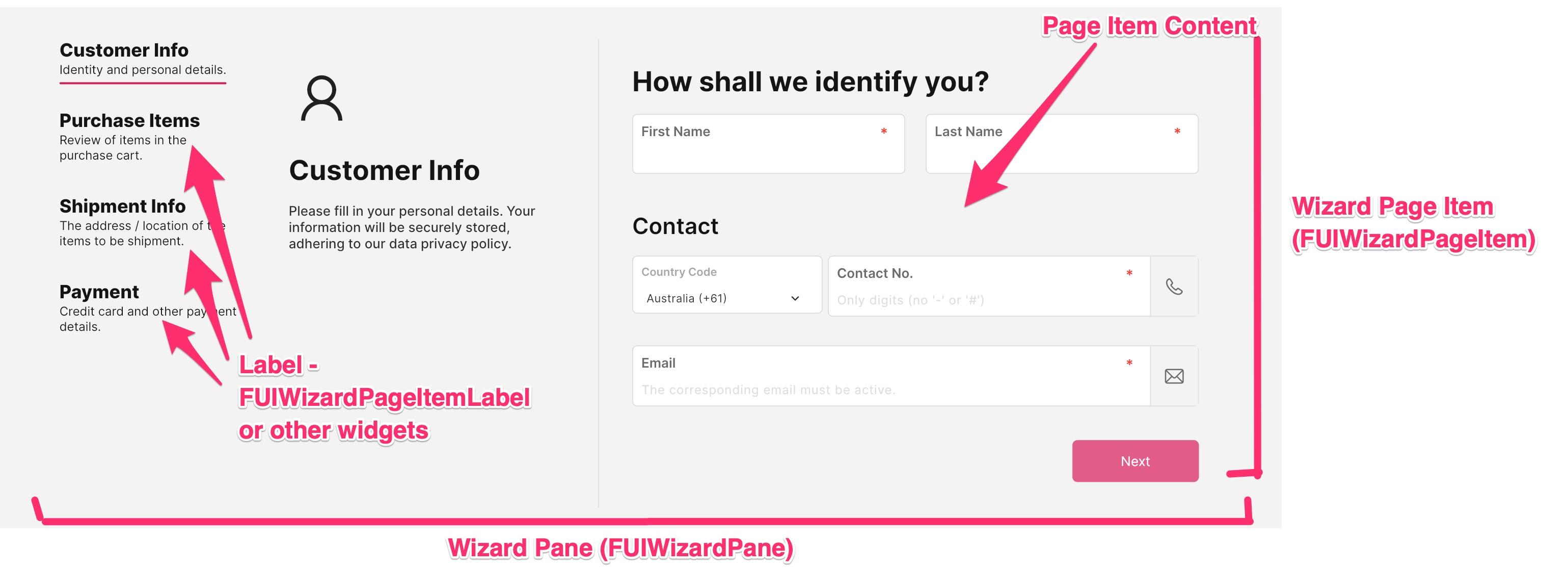

Class Details

Class Name	Dart File	Description
`FUIWizardPane`	fui_wizard_pane.dart	The wizard pane which consists of all the page items and labels for the wizard.
`FUIWizardPageItem`	fui_wizard_page_item.dart	The widget which encapsulates the page item and the label.
`FUIWizardPageItemLabel`	fui_wizard_page_item.dart	The label display widget for the wizard (optional).
`FUIWizardPaneController`	fui_wizard_events.dart	The controller for the wizard pane and paging.

The FUIWizardTheme class is the theme class holds the default theme variables/values.

Accessing the theme

To access the theme class object, do the following:

@override
Widget build(BuildContext context) {
    FUIWizardTheme fuiWizardTheme = context.theme.fuiWizard;

    // ...
}

Usage (simple tutorial)

To comprehend the functionality of the Wizard pane and its components, kindly refer to the provided tutorial for a comprehensive understanding of how these elements interact.

Define the wizard pane controller

The UI Kit’s wizard pane is ineffective without a wizard pane controller. Let us define a FUIWizardPaneController:

FUIWizardPaneController wCtrl = FUIWizardPaneController();

Define the item content widgets

Let’s incorporate “Next” and “Previous” buttons into the page item contents.

/// Item 1
Widget item1Content = SizedBox(
  height: 400,
  child: Column(
    mainAxisAlignment: MainAxisAlignment.center,
    crossAxisAlignment: CrossAxisAlignment.center,
    children: [
      Text('Item 1 content'),
      Row(
        spacing: 20,
        mainAxisAlignment: MainAxisAlignment.center,
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          FUIButtonBlockTextIcon(
              text: Text('Next'),
              onPressed: () {
                wCtrl.nextPage();   // Use the wizard pane controlller to go to next page.
              }),
        ],
      )
    ],
  ),
);

/// Item 2
Widget item2Content = SizedBox(
  height: 400,
  child: Column(
    mainAxisAlignment: MainAxisAlignment.center,
    crossAxisAlignment: CrossAxisAlignment.center,
    children: [
      Text('Item 2 content'),
      Row(
        spacing: 20,
        mainAxisAlignment: MainAxisAlignment.center,
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          FUIButtonBlockTextIcon(
              text: Text('Prev'),
              onPressed: () {
                wCtrl.prevPage(); // Use the wizard pane controlller to go to previous page.
              }),
          FUIButtonBlockTextIcon(
              text: Text('Next'),
              onPressed: () {
                wCtrl.nextPage(); // Use the wizard pane controlller to go to next page.
              }),
        ],
      )
    ],
  ),
);

/// Item 3
Widget item3Content = SizedBox(
  height: 400,
  child: Column(
    mainAxisAlignment: MainAxisAlignment.center,
    crossAxisAlignment: CrossAxisAlignment.center,
    children: [
      Text('Item 3 content'),
      Row(
        spacing: 20,
        mainAxisAlignment: MainAxisAlignment.center,
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          FUIButtonBlockTextIcon(
              text: Text('Prev'),
              onPressed: () {
                wCtrl.prevPage(); // Use the wizard pane controlller to go to previous page.
              }),
          FUIButtonBlockTextIcon(
              text: Text('Done!'),
              onPressed: () {
                print('and submit form...');
              }),
        ],
      )
    ],
  ),
);

Define the wizard pane and the items

Compile all the above in the wizard pane.

FUIWizardPane(
  fuiWizardPaneController: wCtrl, // Assign the wizard pane controller
  pageItemList: [
    FUIWizardPageItem(
      label: FUIWizardPageItemLabel(
        tabLine1: Text('Item 1'),
        tabLine2: Text('Item 1 Description'),
      ),
      content: item1Content,
    ),
    FUIWizardPageItem(
      label: FUIWizardPageItemLabel(
        tabLine1: Text('Item 2'),
        tabLine2: Text('Item 2 Description'),
      ),
      content: item2Content,
    ),
    FUIWizardPageItem(
      label: FUIWizardPageItemLabel(
        tabLine1: Text('Item 3'),
        tabLine2: Text('Item 3 Description'),
      ),
      content: item3Content,
    ),
  ],
);

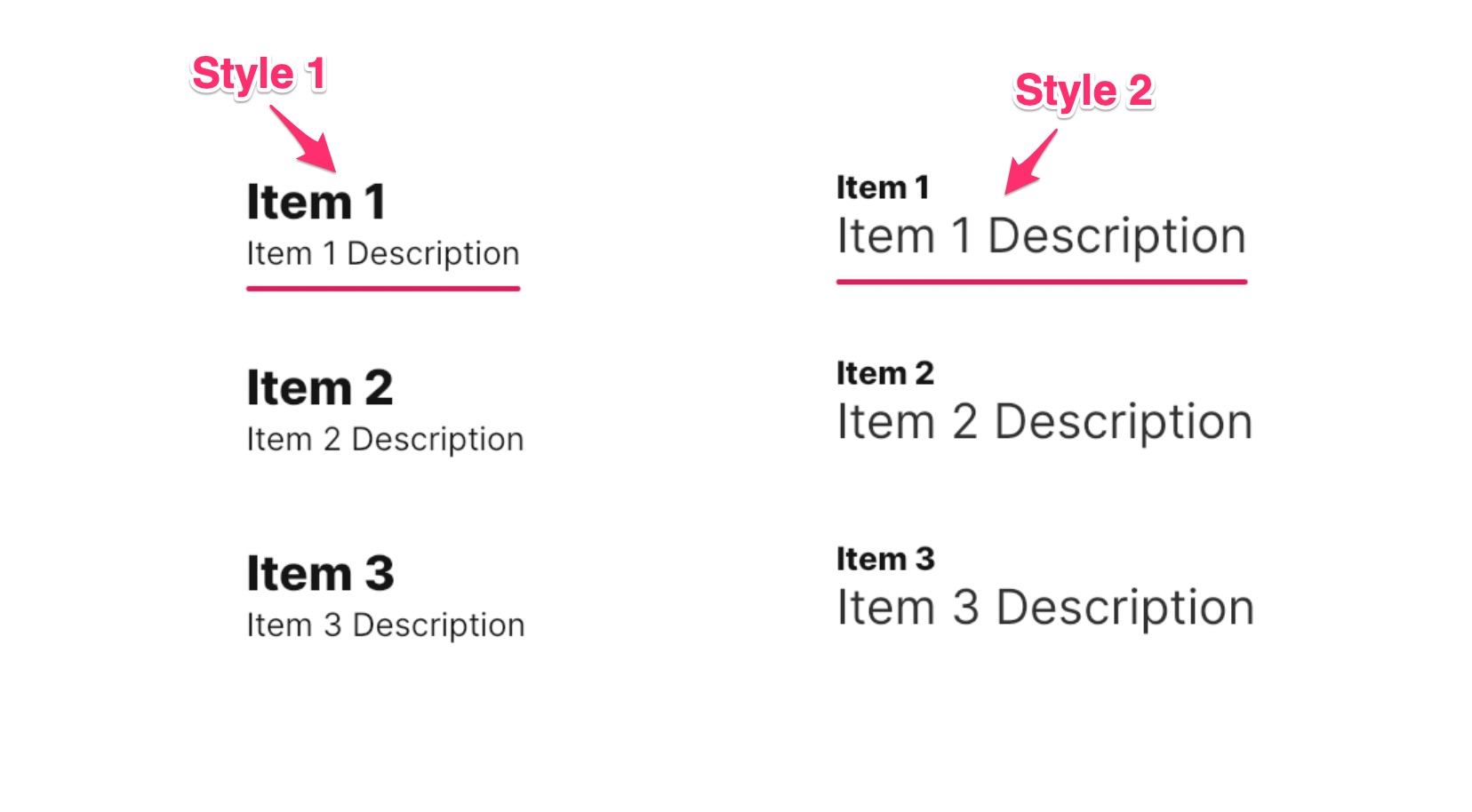

FUIWizardPageItemLabel with different style

The FUIWizardPageItemLabel component offers two distinct styles, which are defined within the FUIWizardPageItemLabelStyleOption enum:

FUIWizardPageItemLabelStyleOption.style1: This style sets the item name font size to be larger than the description font size.
FUIWizardPageItemLabelStyleOption.style2: This style sets the item name font size to be smaller than the description font size.

To configure the styles of the FUIWizardPageItemLabel, simply assign the desired style via the styleOption parameter.

FUIWizardPageItem(
  label: FUIWizardPageItemLabel(
    styleOption: FUIWizardPageItemLabelStyleOption.style1,  // Set to style1 or style2
    tabLine1: Text('Item 1'),
    tabLine2: Text('Item 1 Description'),
  ),
  ...
);

Positioning the item label tabs

The positioning of the item label tabs could be altered. This can be accomplished by assigning the pageItemsPosition parameter with values from the FUIWizardPageItemsPosition enum within the FUIWizardPane.

FUIWizardPane(
  pageItemsPosition: FUIWizardPageItemsPosition.topCenter,  // Have the item label tabs to be at the top center.
  ...
);

Switching to a specific page

To navigate to a specific page item, you can utilize the wizard pane controller as follows:

wCtrl.gotoPage(0); // Go to the first page (index begins with 0);

Alternatively, if the FUIWizardPageItem is assigned with a key, the controller can access the page item by specifying the key.

ValueKey key1 = ValueKey('page1');

// Assign the key to the FUIWizardPageItem
FUIWizardPageItem(
  key: key1,
  ...
);

// goto the specific page item with the key
wCtrl.gotoPageItemKey(key1);

Parameters - FUIWizardPageItem

Parameters	Description
FUIColorScheme fuiColorScheme	The color scheme for the item (usually seen on the item tab).
EdgeInsets? itemTabPadding	The padding (if any) between the item tabs.
bool selectable	Toggle the item to be directly selected via a tap/click (default to `false`).
ValueGetter\<bool\>? selectableWhen	The toggle function to enable/disable item tab selection.
VoidCallback? onSelected	The callback function when the item is selected.
bool decoBarShow	Toggle display of deco bar on the item label.
Color? decoBarActiveColor	Customize the active color of the item label deco bar.
double decoBarHeight	Customize the height of the item label deco bar.
BorderRadius decoBarBorderRadius	Customize the border radius of the item label deco bar.
Duration decoBarAniDuration	Customize the animation duration of the item label deco bar.
Curve decoBarAniCurve	Customize the animation curve of the item label deco bar.

Parameters - FUIWizardPageItemLabel

Parameters	Description
Widget tabLine1	The first line of the item tab label.
Widget tabLine2	The second line of the item tab label.
FUIWizardPageItemLabelAlignment alignment	The alignment options for the label.
FUIWizardPageItemLabelStyleOption styleOption	The style options for the label.

Parameters - FUIWizardPane

Parameters	Description
FUIWizardPaneController? fuiWizardPaneController	Assign the pane wizard controller.
List\<FUIWizardPageItem\> pageItemList	The list of page items.
FUIWizardPageItemsPosition pageItemsPosition	Configure the items tab position.
double contentViewHeight	Customize the view height of the item content pane (default to 450).
double pageItemsSectionLeftRightWidth	If the item tabs are position on the left or right, the space between the tabs and the content region could be customized.
int initialPageIndex	The first page item in the list to be displayed. Index starts with `0`.
bool showPageItems	Toggle the show of the item tabs/labels.
