Checkbox - FUIInputCheckbox


The FUIInputCheckbox is a variation of the toggle-like widget found in the UI Kit.

Widget Class Location

The FUIInputCheckbox widget classes could be found in:

lib/focus_ui_kit/components/input/fui_input_checkbox.dart

Widget Theme Location

The FUIInputCheckbox class is the theme class holds the default theme variables/values.

Accessing the theme

To access the theme class object, do the following:

@override Widget build(BuildContext context) { FUIInputTheme fuiInputTheme = context.theme.fuiInput; // ... }

Usage

Using the FUIInputCheckbox is simple, just this will do:

FUIInputCheckbox( initialValue: true, onChanged: (val) { print('val: $val'); }, );

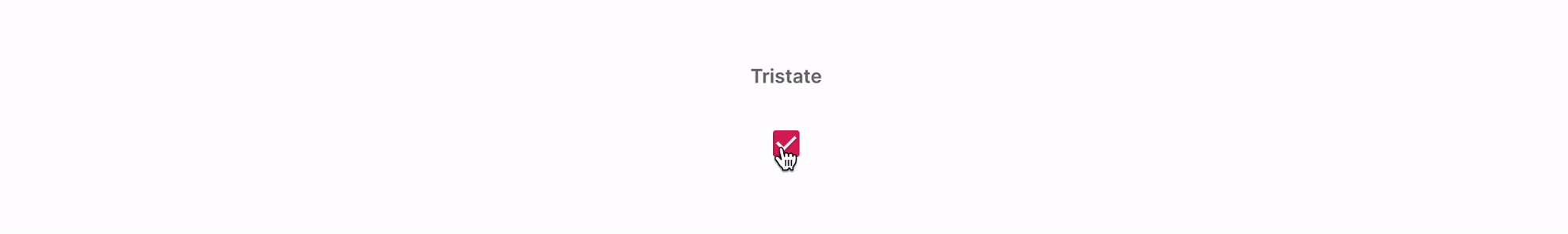

Tristate


In the context of the checkbox, the value can be either true, false, or null, this is called a tristate. However, if the tristate option is disabled, the values can only be true or false.

FUIInputCheckbox( initialValue: true, tristate: true, onChanged: (val) { // val can be true, false or null. print('val: $val'); }, );

Using a controller


The FUIInputCheckbox shares the same controller class as the FUIInputToggleSwitch, which is the FUIInputFieldToggleController.

/// Define and setup the controller (likely in the initState function) FUIInputFieldToggleController tCtrl = FUIInputFieldToggleController(); /// Assign it on a toggle switch widget FUIInputCheckbox( initialValue: true, fuiInputFieldToggleController: tCtrl, onChanged: (val) {}, ); /// Close the controller (likely in the dispose function) tCtrl.close();

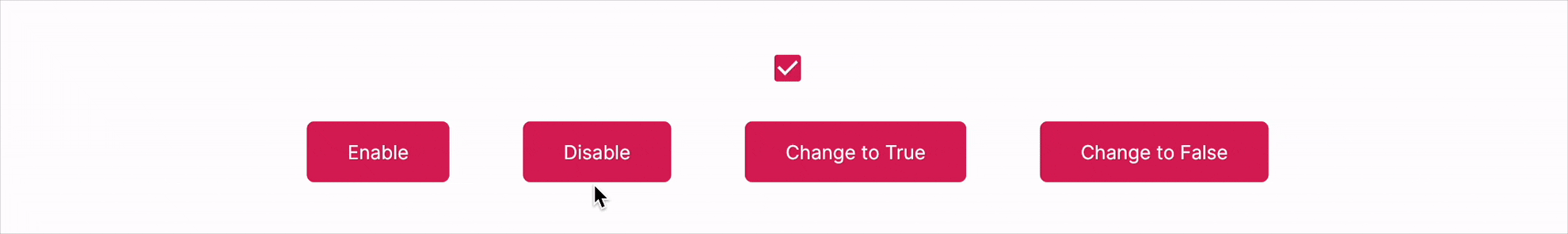

Enable / disable the toggle FUIInputCheckbox

/// Enable tCtrl.trigger(FUIInputFieldToggleEvent( enabled: true, )); /// Disable tCtrl.trigger(FUIInputFieldToggleEvent( enabled: false, ));

Configure readonly on FUIInputCheckbox

/// Read Only tCtrl.trigger(FUIInputFieldToggleEvent( readOnly: true, )); /// Read Only (off) tCtrl.trigger(FUIInputFieldToggleEvent( readOnly: false, ));

Value assignment on FUIInputCheckbox

/// Set to 'true' tCtrl.trigger(FUIInputFieldToggleEvent( value: true, )); /// Set to 'false' tCtrl.trigger(FUIInputFieldToggleEvent( value: false, )); /// Set to 'null' tCtrl.trigger(FUIInputFieldToggleEvent( value: null, ));

Parameters

Parameters

Description

FUIInputFieldToggleController? fuiInputFieldToggleController

The controller for the FUIInputCheckbox.

bool? initialValue

The initial value of the checkbox - either true, false or null (only when tristate is enabled).

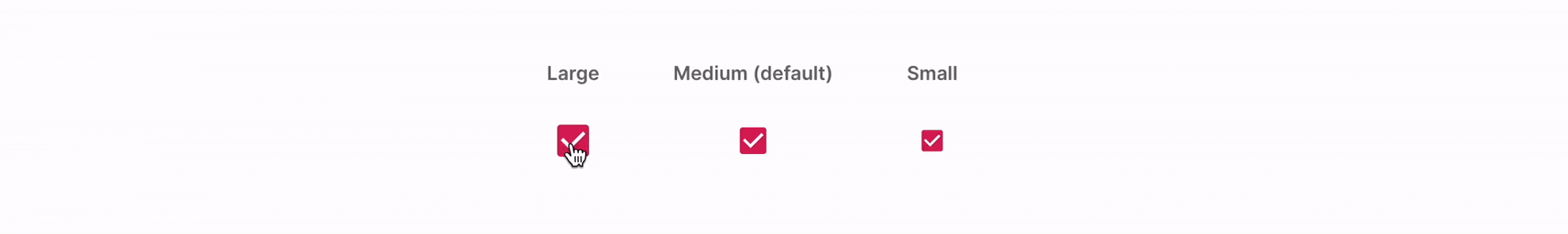

FUIInputSize fuiInputSize

Configure the display size of the checkbox.

FUIColorScheme fuiColorScheme

The color scheme for the FUIInputCheckbox.

bool tristate

Enable/disable tristate.

Color? activeColor

Configure the active/checked background color (overrides color scheme).

Color? checkColor

Configure the checkmark color (overrides color scheme).

Color? focusColor

Configure the background color when the widget is focused.

Color? hoverColor

Configure the background color when the widget is hovered.

bool readOnly

Make the FUIInputCheckbox to be readonly.

bool enable

Enable/disable the FUIInputCheckbox.

Other parameters

The other parameters corresponds to the ones available in Flutter's Checkbox.
