Radio Buttons - FUIInputRadio

The FUIInputRadio widget is the UI Kit’s representation of a radio button.

The FUIInputRadio widget classes could be found in:

lib/focus_ui_kit/components/input/fui_input_radio.dart

The FUIInputRadio class is the theme class holds the default theme variables/values.

Accessing the theme

To access the theme class object, do the following:

@override
Widget build(BuildContext context) {
    FUIInputTheme fuiInputTheme = context.theme.fuiInput;

    // ...
}

Usage

The FUIInputRadio widget is recommended to be utilized within a Stateful widget, typically in conjunction with the FUIInputFieldRadioGroupController, which functions as the common value holder for multiple radio buttons of the same group.

Here's an example:

// Define the radio group controller
FUIInputFieldRadioGroupController<int> radioGroupCtrl = FUIInputFieldRadioGroupController<int>(1);

// With value 1
FUIInputRadio<int>(
  fuiInputFieldRadioGroupController: radioGroupCtrl,
  value: 1,
  onChanged: (val) {},
);

// With value 2
FUIInputRadio<int>(
  fuiInputFieldRadioGroupController: radioGroupCtrl,
  value: 2,
  onChanged: (val) {},
);

// With value 3
FUIInputRadio<int>(
  fuiInputFieldRadioGroupController: radioGroupCtrl,
  value: 3,
  onChanged: (val) {},
);

// To get the value...
int? selectedVal = radioGroupCtrl.groupValue;

When multiple FUIInputRadio widgets share the same FUIInputFieldRadioGroupController, they collectively form a group. Consequently, when different FUIInputRadio (s) with the same FUIInputFieldRadioGroupController are utilized, the groupValue within the FUIInputFieldRadioGroupController undergoes a change.

Data Type of Value

The FUIInputRadio and the FUIInputFieldRadioGroupController accept a generic type parameter, thereby determining the groupValue type as well.

If a different data type, such as String, is desired, it can be easily achieved as follows:

FUIInputFieldRadioGroupController<String> radioGroupCtrl = FUIInputFieldRadioGroupController<String>('A');

FUIInputRadio<String>(
    fuiInputFieldRadioGroupController: radioGroupCtrl,
    ...
);

Using a controller

The FUIInputFieldRadioController facilitates the management of the enable/disable and readonly status of the FUIInputRadio.

For example:

// Define the controller
FUIInputFieldRadioController ctrl = FUIInputFieldRadioController();

// Assign the controller
FUIInputRadio<String>(
    fuiInputFieldRadioController: ctrl,
    ...
);

// Toggle enable
ctrl.trigger(FUIInputFieldRadioEvent(
  enable: true,
));

// Toggle disable
ctrl.trigger(FUIInputFieldRadioEvent(
  enable: false,
));

// Toggle readOnly
ctrl.trigger(FUIInputFieldRadioEvent(
  readOnly: true,
));

Parameters

Parameters	Description
FUIColorScheme fuiColorScheme	The color scheme for the `FUIInputRadio`.
FUIInputFieldRadioGroupController\<T\>? fuiInputFieldRadioGroupController	The radio button group value controller .
FUIInputFieldRadioController? fuiInputFieldRadioController	The general purpose controller.
T value	The value when the radio button is selected (conform to the generic type of the `FUIInputRadio`).

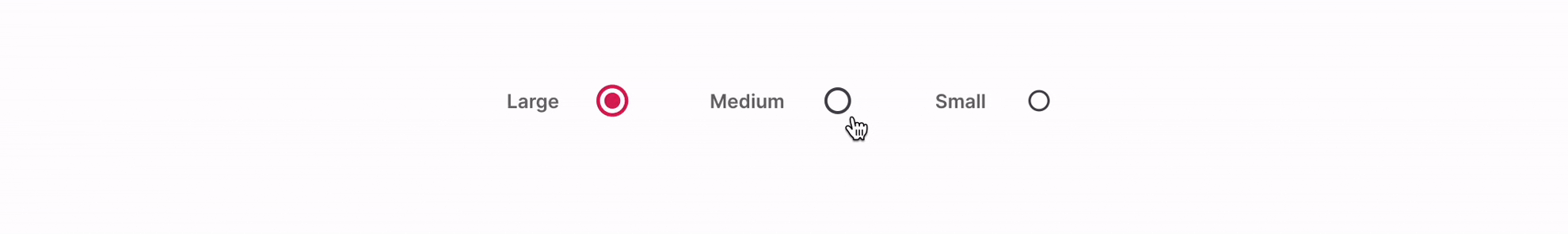

FUIInputSize fuiInputSize	Configure the display size of the checkbox.

Other parameters

The other parameters corresponds to the ones available in Flutter's Radio.
