Text Input - FUIInputText

The FUIInputText is likely the most frequently utilized text input widget within the UI kit, facilitating the input of textual data.

FUIInputText offers a comprehensive set of configurable options, including the modification of status borders and the concealment of input values.

The FUIInputText widget classes could be found in:

lib/focus_ui_kit/components/input/fui_input_text.dart

The FUIInputTheme class is the theme class holds the default theme variables/values.

Accessing the theme

To access the theme class object, do the following:

@override
Widget build(BuildContext context) {
    FUIInputTheme fuiInputTheme = context.theme.fuiInput;

    // ...
}

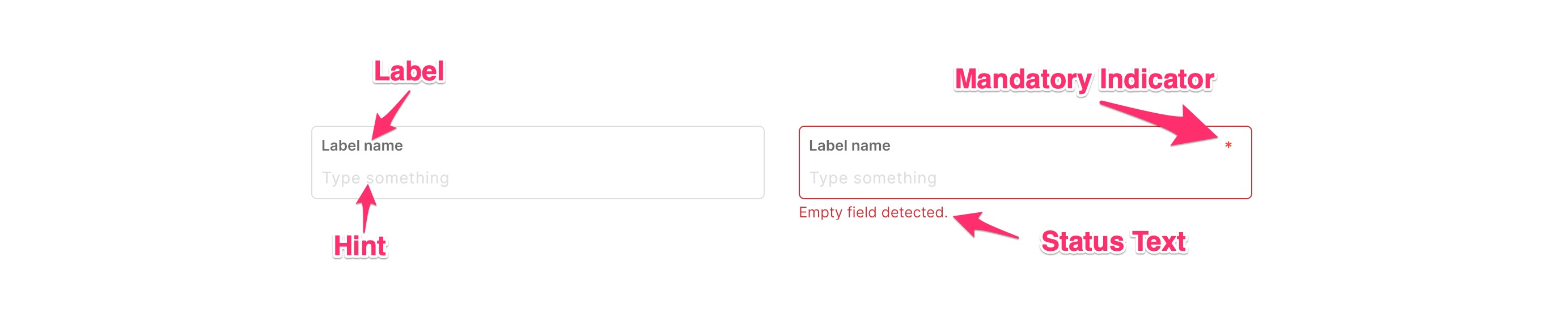

Anatomy

A typical UI structure for the FUIInputText component consists of a expandable/shrinkable label that shrinks when the text field is in focus or when the text value was entered in the field. The component also includes a border, an optional side icon, a status border with text and indicator, and a mandatory indicator.

Usage

Here is how to declare the FUIInputText widget:

FUIInputText(
    label: 'Label name',
    hint: 'Type something',
);

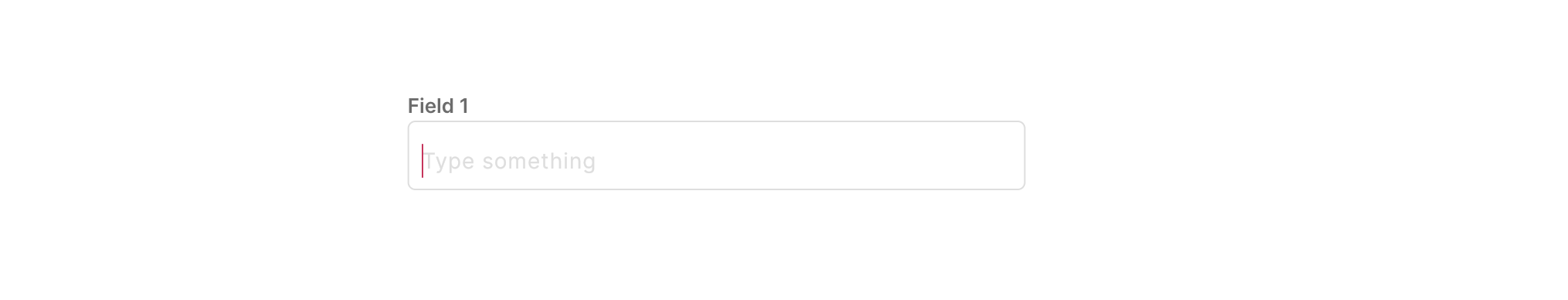

With label or without label

If you prefer not to have the animated label displayed within the input box, you may toggle the visibility of the label.

FUIColumn(
    children: [
        FieldLabel(Text('Field 1')),
        FUIInputText(
          showTopLabelBar: false,
          hint: 'Type something',
        ),
    ],
);

Changing the size

Like many other Focus UI Kit widgets, the size of the FUIInputText can be adjusted using the fuiInputSize parameter, namely:

Large
Medium (default)
Small

/// Large
FUIInputText(
  fuiInputSize: FUIInputSize.large,
  label: 'Field Label',
  hint: 'Type something',
);

/// Medium (default)
FUIInputText(
  fuiInputSize: FUIInputSize.medium,
  label: 'Field Label',
  hint: 'Type something',
);

/// Small
FUIInputText(
  fuiInputSize: FUIInputSize.small,
  label: 'Field Label',
  hint: 'Type something',
);

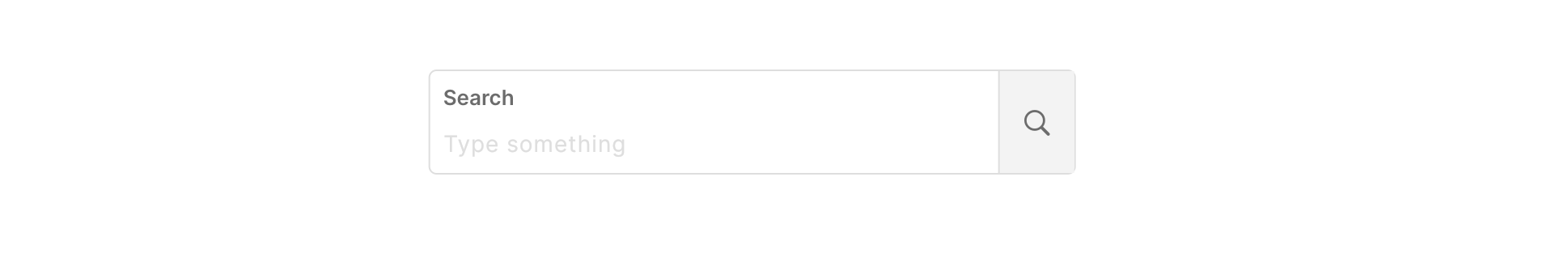

Side icon

A side icon can be included for the FUIInputText widget, as follows:

FUIInputText(
    label: 'Search',
    hint: 'Type something',
    sideIcon: Icon(CupertinoIcons.search),
);

Changing the position of the side icon

FUIInputText(
    label: 'Search',
    hint: 'Type something',
    sideIcon: Icon(CupertinoIcons.search),
    fuiInputSideIconPosition: FUIInputSideIconPosition.left,
);

Showing the Mandatory indicator

The mandatory indicator serves solely as a decorative element positioned at the top corner of the input box.

FUIInputText(
    label: 'Search',
    hint: 'Type something',
    mandatory: true,
);

Changing the Mandatory indicator

To modify the mandatory indicator, simply include an indicator widget of any kind via the mandatoryIndicator parameter.

FUIInputText(
    label: 'Search',
    hint: 'Type something',
    mandatory: true,
    mandatoryIndicator: Text('!', style: TextStyle(color: Colors.red)),
);

Doing things with Controller - FUIInputFieldController

The FUIInputFieldController class is responsible for controlling specific aspects of the FUIInputText programmatically.

Initializing the `FUIInputFieldController`

late FUIInputFieldController fuiInputFieldCtrl;

@override
void initState() {
    super.initState();
    fuiInputFieldCtrl = FUIInputFieldController();
}

@override
void dispose() {
    fuiInputFieldCtrl.close();
    super.dispose();
}

@override
Widget build(BuildContext context) {

    // ...

    var w = FUIInputText(
      fuiInputFieldController: fuiInputFieldCtrl,
      label: 'Field Label',
      hint: 'Type something',
    );

    // ...
}

Enabling / Disabling the Input Field

// Enable
fuiInputFieldCtrl.trigger(FUIInputFieldEvent(
  enabled: true,
));

// Disable
fuiInputFieldCtrl.trigger(FUIInputFieldEvent(
  enabled: false,
));

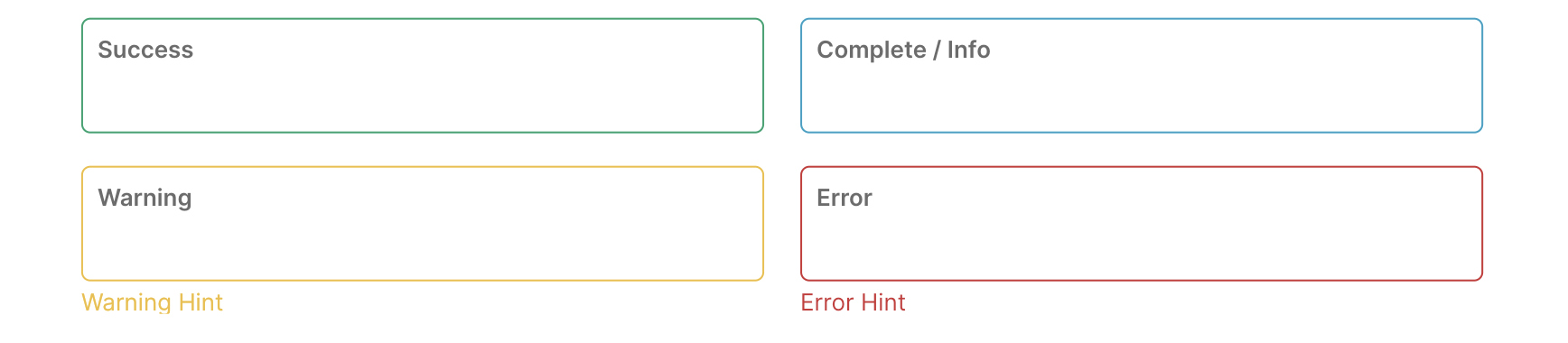

Changing status type and text

In certain scenarios, there may be a need to prompt for specific status messages or input value highlights, primarily after validating input fields.

The border color of the input box could be changed to indicate the status type. To achieve this, utilize the controller and assign the fuiInputStatusType property. This property accepts a value from the FUIInputStatusType enum. Additionally, assign the fuiInputStatusText property for displaying the status message.

/// Change to error
fuiInputFieldCtrl.trigger(FUIInputFieldEvent(
  fuiInputStatusType: FUIInputStatusType.error,
  fuiInputStatusText: 'Invalid field detected. Please amend',
));

/// Change to normal
fuiInputFieldCtrl.trigger(FUIInputFieldEvent(
  fuiInputStatusType: FUIInputStatusType.normal,
  fuiInputStatusText: '',
));

Making the input field READ ONLY

To render the input field as read-only (non-editable), simply execute the following code:

fuiInputFieldCtrl.trigger(FUIInputFieldEvent(
  readOnly: true,
));

Parameters

Parameters	Description
FUIInputFieldController? fuiInputFieldController	The controller for the input field.
String? label	The input field label within the box.
String? hint	The subtle hint text on the input field.
bool mandatory	Toggle the display of mandatory indicator.
Widget? mandatoryIndicator	A custom mandatory indicator (if needed).
bool showTopLabelBar	Toggle the display of the top label.
String? initialValue	The initial value (or assign it via textEditingController).
FUIInputSize fuiInputSize	The size of the input box, accepts values from `FUIInputSize` enum.
FUIInputStatusType fuiInputStatusType	The status type of the input box.
String? fuiInputStatusText	The status type text (if any).
Widget? sideIcon	The decorative side icon (if any).
FUIInputSideIconPosition fuiInputSideIconPosition	The position of the side icon.
Color? sideIconBackgroundColor	The background color of the side icon portion.

Other parameters

The other parameters corresponds to the ones available in TextFormField.

27 March 2025
